LabChip HT Software The LabChip 90 software automatically calculates the size and concentration of each protein or DNA fragment and provides digital results. Data is generated in just seconds per sample and is reported real-time as each well is processed. Results are displayed in a tabular format, an electropherogram view and in a gel-like image. LabChip HT Software is a far more precise, accurate and reliable method of generating data than gel scanning and photo documentation. Our 'virtual gel' image resembles traditional slab gel results and automatically aligns lanes to make visual comparison easier Multiple gel views allow you to see a row of samples or the entire 96- or 384-well plate Start a run anywhere on the plate or select specific subsections of the plate for analysis Users can specify up to ten fragments that are identified and flagged for each sample on the plate Data overlay capabilities makes it easy to compare samples within a plate Gel images, electropherograms and results tables can be copied and pasted into reports and presentations Users can easily switch between DNA and protein analysis by selecting one of several preconfigured assays

DNA assay(PDF)   Protein assay(PDF)   Product Brochure (pdf)   Dataview software,     More screendumps with explanation.

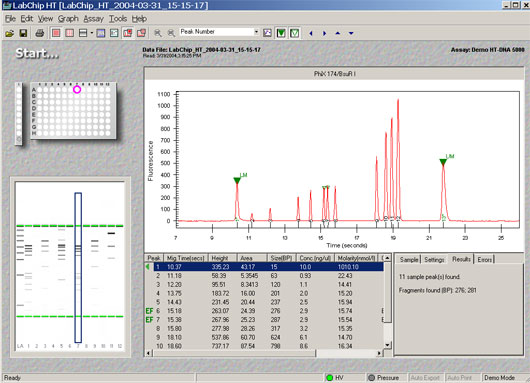

LabChip HT Software Main Screen

The LabChip 90 offers clear benefits for DNA laboratories handling high sample loads:

• Walk-Away Automation. Pipetting errors are eliminated because DNA is sampled directly from 96-well or 384-well plates. Once an analytical run is started, all samples on a plate are analyzed with no user intervention.
• High Data Quality. Accuracy, reproducibility, and sensitivity are significantly better than with slab gel electrophoresis.
• Automated Data Analysis and Data Export. The need for photographic gel documentation is eliminated with the LabChip 90 . Digital data formats are compatible with major databases.
• Increased Productivity. The speed, accuracy, and efficiency of the LabChip 90 free researchers to focus on higher value activities.

Caliper's LabChip 90 provides a complete, integrated solution for DNA fragment analysis. Each system includes:

• Complete analytical instrumentation
• Intuitive software
• LabChip DNA Analysis Kit
• Training and warranty

Two LabChip assay kits are available:

• HT DNA 5000 SE55 kit, which provides a 55 second per sample run time for enhanced peak resolution.
• HT DNA 5000 SE30 kit, which provides a 30 second per sample run time for higher throughput.

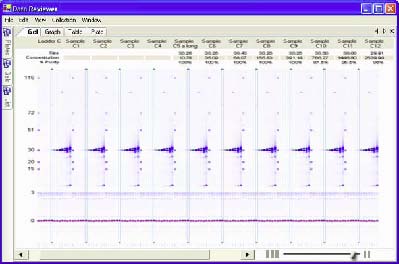

Collections can be viewed in egram, result table, gel or plate formats

Benefits:
Allow ease in manipulating and comparing data quantitatively from multiple
runs
Separate package from LabChip HT data acquisition software to allow
flexibility in data analysis beyond LC90 computer to user’s desktop
No additional database licensing needed

Workflow:
User imports LabChip HT files into the Data Viewer workspace
Data is added from the workspace into a viewing collection manually or
automatically using basic sorting options such as well number, sample
name, EP/EF, size or concentration range, column format reorder, etc.

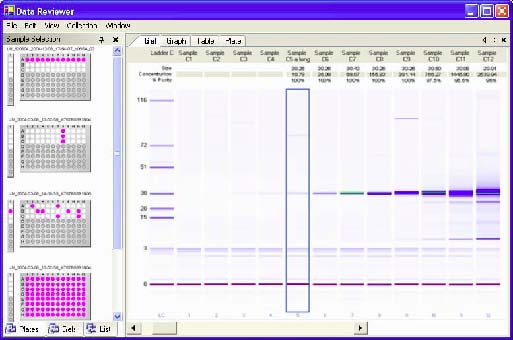

Collections can be viewed in egram, result table, gel or plate formats
Collections can be saved and exported

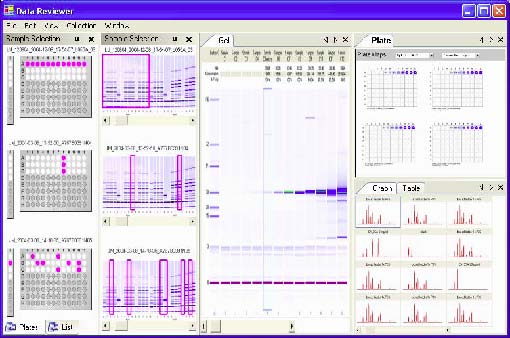

• User can rearrange the window layout
• Save the workspace layout for future collection viewing
• Save analyzed and raw data as part of workspace

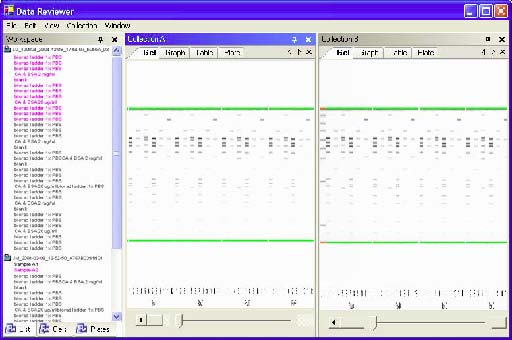

Collection A and B may be viewed side by
side with synchronized scrolling.
