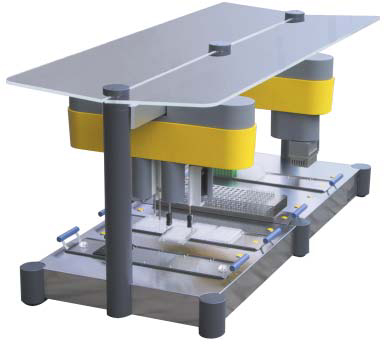

Xiril ® The unbeatable lightnes of pipetting 1 to 4 liquidchannels with integrated gripper arm and a optional 96 liquid channel head.The striking design reflects modular architecture for a very competitive price. Highlights The Xiril robots are the long-awaited solutions for the low-end pipetting market, combining robust technology, high precision, and maximum flexibility on a small footprint. Pipetting Actions Single pipetting, multi pipetting Serial dilutions, pre-dilutions, multiple common pre-dilutions Liquid mixing in source and destination container Sample Handling Actions Aliquoting, archiving, parallel sample distribution continuous sample re-load Optional Features Plate Handler “GripX” Gripper fingers are manipulated with 2 tip adapters (positioning accuracy in x, y, z: ca. 0,2mm) Barcode Scanner “TubeScanX” Vertical barcodes on sample tubes identified by a CCD barcode reader
	Product Brochures The solution DNA / RNA extraktion with PROMEGA Video starring the Xiril robot

The ultimate tool to realize your brilliant ideas. And it comes with a unique

functionality / price ratio

Unique combination of liquid and plate handling highly flexible SW and HW architecture easy to support and service VBA based software.

• on-board PC and CD-RW
• open communication ports
• ease of implementation of customers’ modules
• straight forward application development
• very low time-to-operation
• very competitive price structure
• unique functionality / price ratio


  Techniques
air displacement pipetting technology air pressure liquid level detection

Actions
sample aliquoting and archiving serial & parallel sample pipetting, serial dilutions single & multi-pipetting of samples and reagents
liquid mixing before aspirating and/or after dispensing processing assays in 96-well and 384-well microplates

Volume range depending on pumpsystem and tip configuration
10 - 1000µl
2 - 250µl

Pressure-based Liquid SensorSystem Liquid Level Detection Clot Detection Clogged Tip DetectionMicro Piston Pumps with
variable Y-spacing individual Z-movement

Tip Types
Disposable Tips with & without filters or washable Stainless Steel Tips with various coatings exchangeable

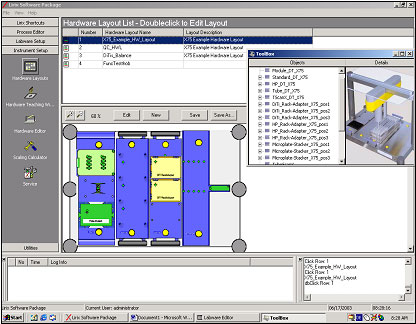

Open software concept ease of custom integration embedded SAX Basic Engine macros to control the instrument
sophisticated user access management Modular structure with a multi-layer hierarchy LIRIX to run processes
Layout Editor to define deck layouts Process Editor to edit and define processes HW & LW Editors to setup and test instrument

Pipette from everywhere e.g tubes, jars, and plates in 96 or 384 format.

Move plates and accesories around on the workdeck with the integrated gripper tool.

Perform separation and purification processes. Use megnetic beads or vacuum-based filtration systems. This
system is readily adaptable to solid-phase extraction methods that utilize filter plates, including DNA, RNA and protein extraction and purification protols, Xiril works with all kit/reagens manufacturer

On deck shaker under software control.
